Setup a new project in Jenkins

Please, have in mind there are many ways to setup your analysis. Next we show a simple example on how to setup your analysis in a easy way. For a more complex configuration you will need to train yourself with Jenkins, or hire our services to understand your needs and setup it accordingly.

1. Create a new item

1.1 From the main dashboard click on New Item

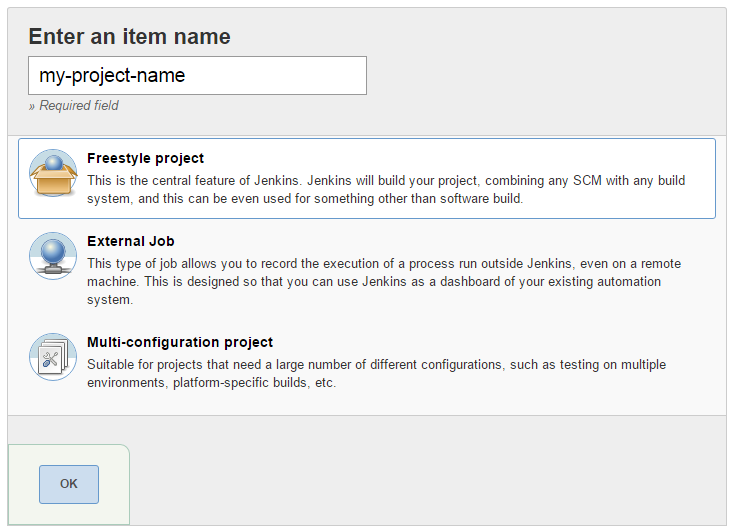

1.2 Enter the name for your project, then select Freestyle project and click OK.

2. Fill project datasheet

After you have created the item, a datasheet with multiple tabs is opened to setup your project. Next, there is a fast view of each tab.

2.1 General tab

Project name. This is the name that you will see on SonarQube. Be sure to set the final name because if you change it after a run, you will have two projects on SonarQube: one with the previous name and one with the current name.

GitHub project. If your project is in Github, you could select this option and avoid installing Git on your system. This option is only valid for a public repository on GitHub. If your repository on Github is private, configure it as a Git repository.

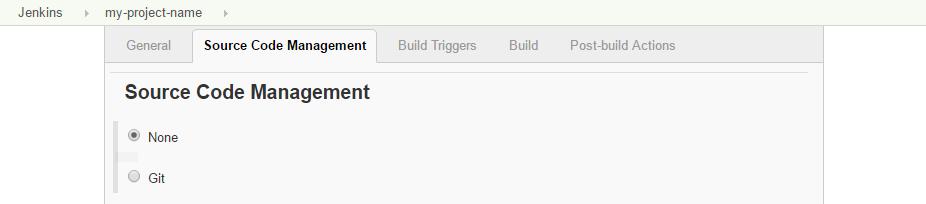

2.2 Source Code Management tab

You will see the list of Source Code Management plugins you have installed on Jenkins. If you are using a different SCM from which you can see, then install the plugin for your repository.

Select the repository from which the code should be retrieved and configure any requirement for the plugin.

2.3 Build Triggers tab

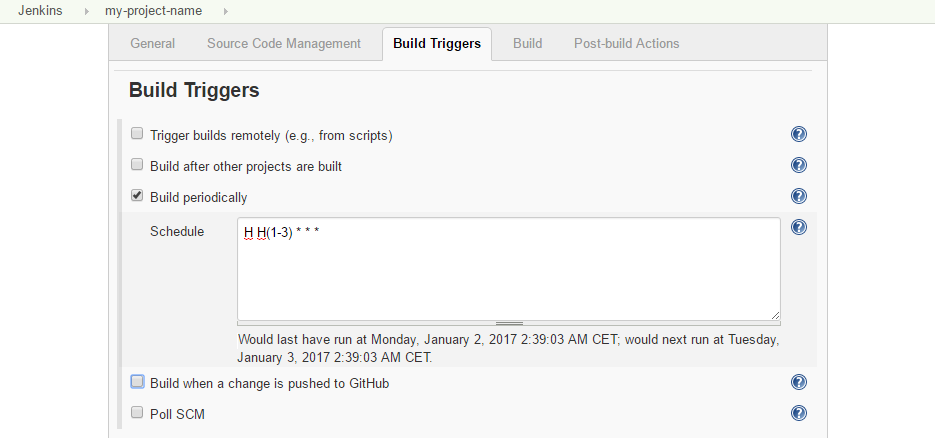

Configure the build periodically. In the next example, we build each day between 1am and 3am.

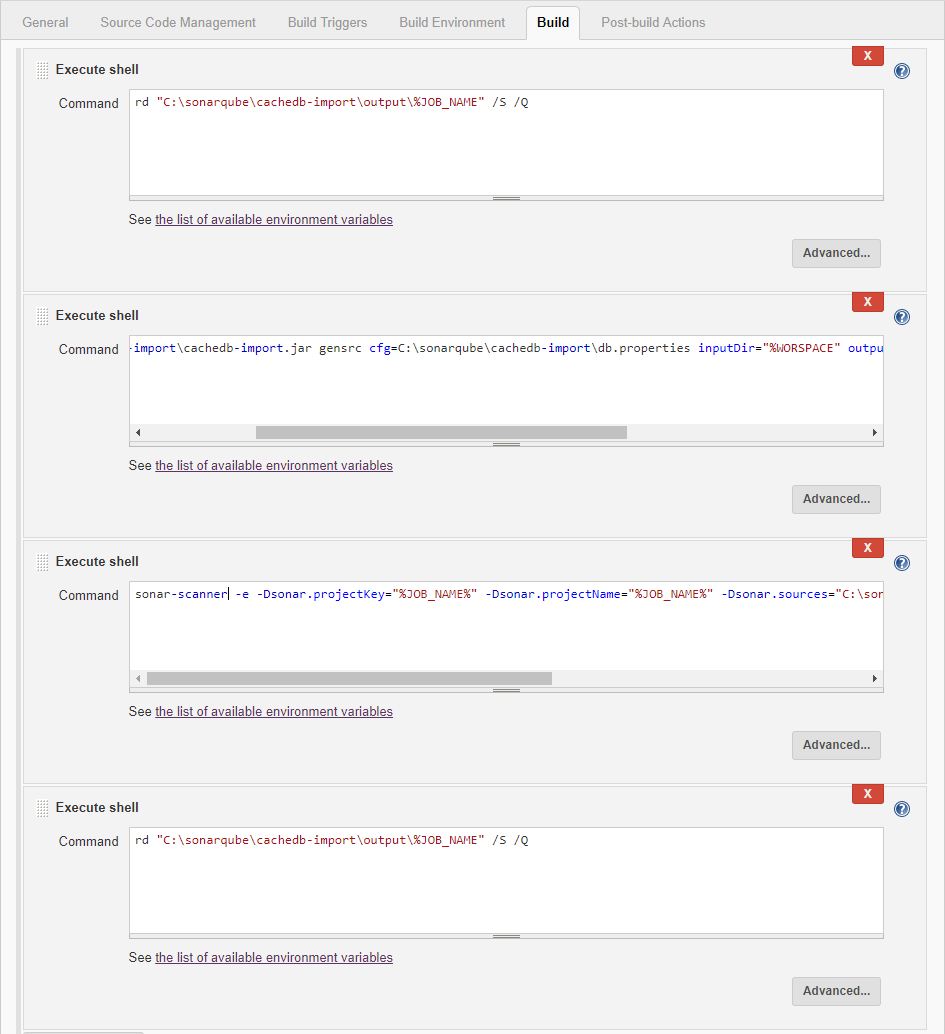

2.4 Build tab

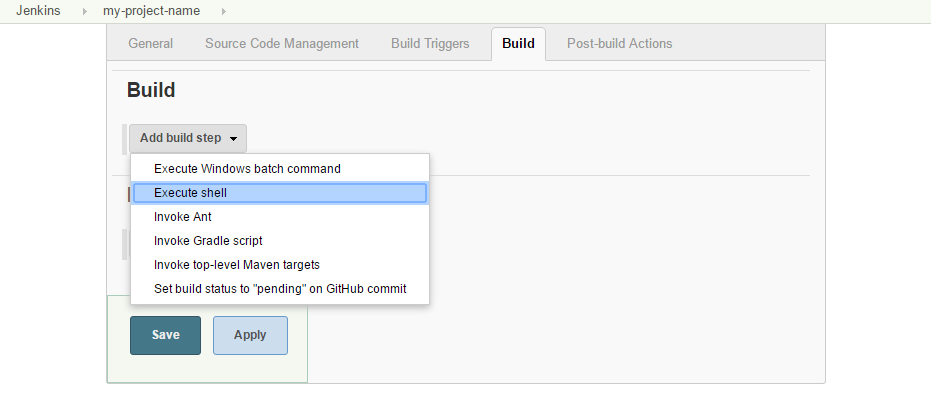

2.4.1 Add a build step Execute shell to clean the output directory to avoid errors if the previous execution failed and the path is not clear

rd "C:\sonarqube\cachedb-import\output\%JOB_NAME" /S /Q

2.4.2 If you don't setup any source code management, add a build step Execute Windows batch command to copy your local sources to the workspace

xcopy /E "C:\my\sources\path" "%WORKSPACE%"

2.4.3 Add a build step Execute Windows batch command; if your sources are in XML format, the first execution must be the transformation to cls

java -jar C:\sonarqube\cachedb-import\cachedb-import.jar gensrc cfg=C:\sonarqube\cachedb-import\db.properties inputDir="%WORSPACE%" outputDir="C:\sonarqube\cachedb-import\output\%JOB_NAME%"

Alternatively, if your code does not require any transformation, then execute the following command instead

xcopy /E "%WORKSPACE%" "C:\sonarqube\cachedb-import\output\%JOB_NAME%"

2.4.4 Add a build step Execute Windows batch command; now you must run sonar-runner, this is the analysis step

cd "C:\sonarqube\cachedb-import\output\%JOB_NAME%"
set SONNAR_SCANNER_OPTS="--add-opens=java.base/java.lang=ALL-UNNAMED"
sonar-scanner ^
     -Dsonar.lang.patterns.php="**/*.php" ^
     -Dsonar.projectKey="%JOB_NAME%" ^
     -Dsonar.projectName="%JOB_NAME%" ^
     -Dsonar.sources=. ^
     -Dsonar.projectVersion=1.0
Since sonar-scanner 5.1 you have to set the sonar variable sonar.scanner.opts.
If you get an error indicating that it is unable to parse the file, try to include the parameter -Dsonar.objectscript.encode={encoding}, using your files encoding. For example, -Dsonar.objectscript.encode=UTF-8.

Alternatively, if you are using Unit Test to generate the information for the Code Coverage, then execute the following command instead:

cd "C:\sonarqube\cachedb-import\output\%JOB_NAME%"
set SONNAR_SCANNER_OPTS="--add-opens=java.base/java.lang=ALL-UNNAMED"
sonar-scanner ^
     -Dsonar.lang.patterns.php="**/*.php" ^
     -Dsonar.projectKey="%JOB_NAME%" ^
     -Dsonar.projectName="%JOB_NAME%" ^
     -Dsonar.sources=./src ^
     -Dsonar.tests=./test ^
     -Dsonar.projectVersion=1.0 ^
     -Dsonar.coverageReportPaths="%WORKSPACE%/codecoverage/codecoverage.xml"

See Code Coverage section for more information

Since sonar-scanner 5.1 you have to set the sonar variable sonar.scanner.opts.

2.4.5 Add a build step Execute Windows batch command as finally we need to clean the output directory or you will get errors on next run

rd "C:\sonarqube\cachedb-import\output\%JOB_NAME%" /S /Q

Those steps can be different accordingly to your configuration and your sources format. Here we are processing XML source files.

2.5 Post-build Actions tab

The cachéQuality analysers do not need any post-build action, but you can setup any requirement you have

2.6 Save

Remember to save your configuration.

1. Create a new item

1.1 From the main dashboard click on New Item

1.2 Enter the name for your project, then select Freestyle project and click OK.

2. Fill project datasheet

After you have created the item, a datasheet with multiple tabs is opened to setup your project. Next, there is a fast view of each tab.

2.1 General tab

Project name. This is the name that you will see on SonarQube. Be sure to set the final name because if you change it after a run, you will have two projects on SonarQube: one with the previous name and one with the current name.

Github project. If your project is in Github, you could select this option and avoid installing Git on your system. This option is only valid for a public repository on Github. If your repository on Github is private, configure it as a Git repository.

2.2 Source Code Management tab

You will see the list of Source Code Management plugins you have installed on Jenkins. If you are using a different SCM from which you can see, then install the plugin for your repository.

Select the repository from which the code should be retrieved and configure any requirement for the plugin.

2.3 Build Triggers tab

Configure the build periodically. In the next example, we build each day between 1am and 3am.

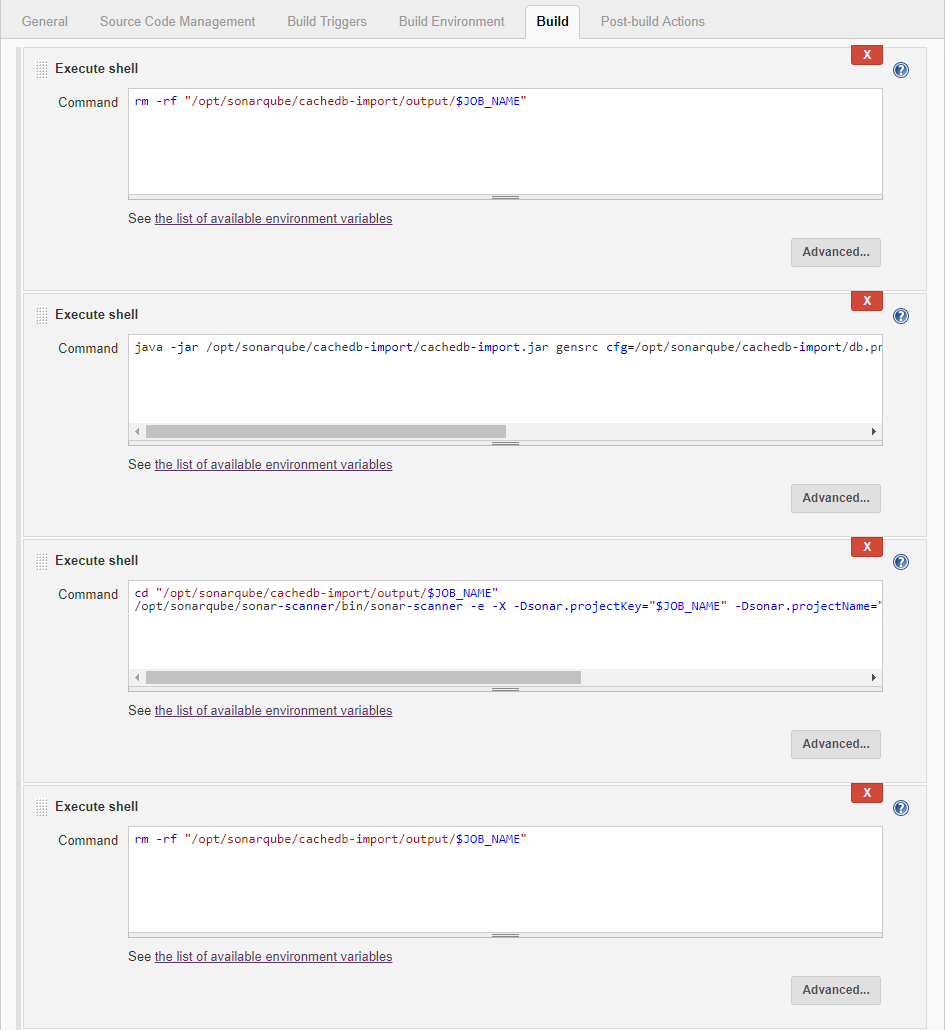

2.4 Build tab

2.4.1 Add a build step Execute shell to clean the output directory to avoid errors if the previous execution failed and the path is not clear

rm -rf "/opt/sonarqube/cachedb-import/output/$JOB_NAME"

2.4.2 If you don't setup any source code management, add a build step Execute shell to copy your local sources to the workspace

cp -r "/my/sources/path" "$WORKSPACE"

2.4.3 Add a build step Execute shell; if your sources are in XML format, the first execution must be the transformation to cls

/opt/java/default-jdk/bin/java -jar /opt/sonarqube/cachedb-import/cachedb-import.jar gensrc \
                cfg=/opt/sonarqube/cachedb-import/db.properties \
                inputDir="$WORKSPACE" outputDir="/opt/sonarqube/cachedb-import/output/$JOB_NAME"

Alternatively, if your code does not require any transformation, then execute the following command instead

cp -r "$WORKSPACE" "/opt/sonarqube/cachedb-import/output/$JOB_NAME"

2.4.4 Add a build step Execute shell; now you must run sonar-runner, this is the analysis step

cd "/opt/sonarqube/cachedb-import/output/$JOB_NAME"
SONNAR_SCANNER_OPTS="--add-opens=java.base/java.lang=ALL-UNNAMED"
/opt/sonarqube/sonar-scanner/bin/sonar-scanner \
               -Dsonar.lang.patterns.php="**/*.php" \
               -Dsonar.projectKey="$JOB_NAME" \
               -Dsonar.projectName="$JOB_NAME" \
               -Dsonar.sources=. \
               -Dsonar.projectVersion=1.0
Since sonar-scanner 5.1 you have to set the sonar variable sonar.scanner.opts.
If you get an error indicating that it is unable to parse the file, try to include the parameter -Dsonar.objectscript.encode={encoding}, using your files encoding. For example, -Dsonar.objectscript.encode=UTF-8.

Alternatively, if you are using Unit Test to generate the information for the Code Coverage, then execute the following command instead:

SONNAR_SCANNER_OPTS="--add-opens=java.base/java.lang=ALL-UNNAMED"
cd "/opt/sonarqube/cachedb-import/output/$JOB_NAME"
/opt/sonarqube/sonar-scanner/bin/sonar-scanner \
               -Dsonar.lang.patterns.php="**/*.php" \
               -Dsonar.projectKey="$JOB_NAME" \
               -Dsonar.projectName="$JOB_NAME" \
               -Dsonar.sources=./src \
               -Dsonar.tests=./test \
               -Dsonar.projectVersion=1.0 \
               -Dsonar.coverageReportPaths="$WORKSPACE/codecoverage/codecoverage.xml"

See Code Coverage section for more information

Since sonar-scanner 5.1 you have to set the sonar variable sonar.scanner.opts.

2.4.5 Add a build step Execute shell as finally we need to clean the output directory or you will get errors on next run

rm -rf "/opt/sonarqube/cachedb-import/output/$JOB_NAME"

Those steps can be different accordingly to your configuration and your sources format. Here we are processing XML source files.

2.5 Post-build Actions tab

The cachéQuality analysers do not need any post-build action, but you can setup any requirement you have

2.6 Save

Remember to save your configuration.
